This simple setup allows to split one Netgear GD724T 24 port switch into two 12 port VLANs so that it can serve 2 independent network segments / subsets.
- Login to the Netgear switch management web interface.

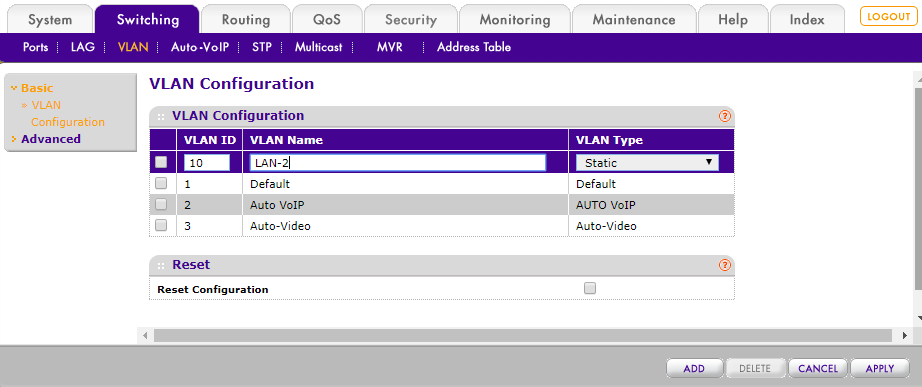

- Go to Switching > VLAN > Basic > VLAN Configuration
- Create a new VLAN with Name and ID of your choice (i.e. Name: LAN-2 ID: 10).

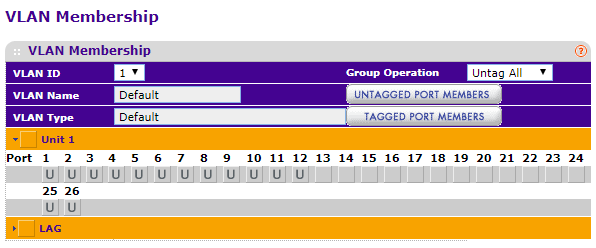

- Go to Switching > VLAN > Advanced > VLAN Membership
- Leave VLAN ID set to 1 (Default) and clear ports 13-24 (which you will assign to the new VLAN) from U and T tags. Apply changes.
- Change VLAN ID to 10 and set ports 13-24 as U (untagged).
- Leave VLAN ID set to 1 (Default) and clear ports 13-24 (which you will assign to the new VLAN) from U and T tags. Apply changes.

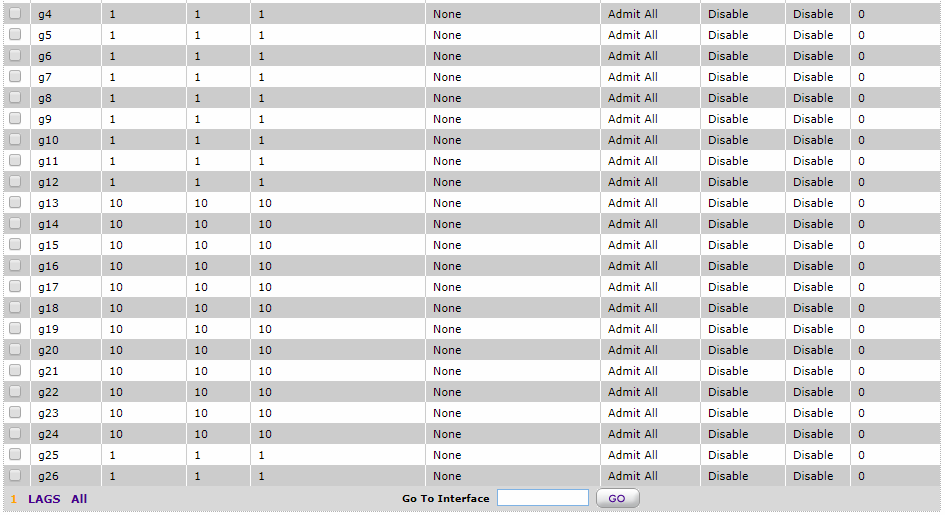

- Go to Switching > VLAN > Advanced > Port PVID Configuration
- Set ports 13-24 with PVID of 10 (your new VLAN ID)
- Set ports 13-24 with PVID of 10 (your new VLAN ID)
- Create a new VLAN with Name and ID of your choice (i.e. Name: LAN-2 ID: 10).
