Installing BMW Alpine Stereo upgrade (BMW 3 series E90)

Remove back seat

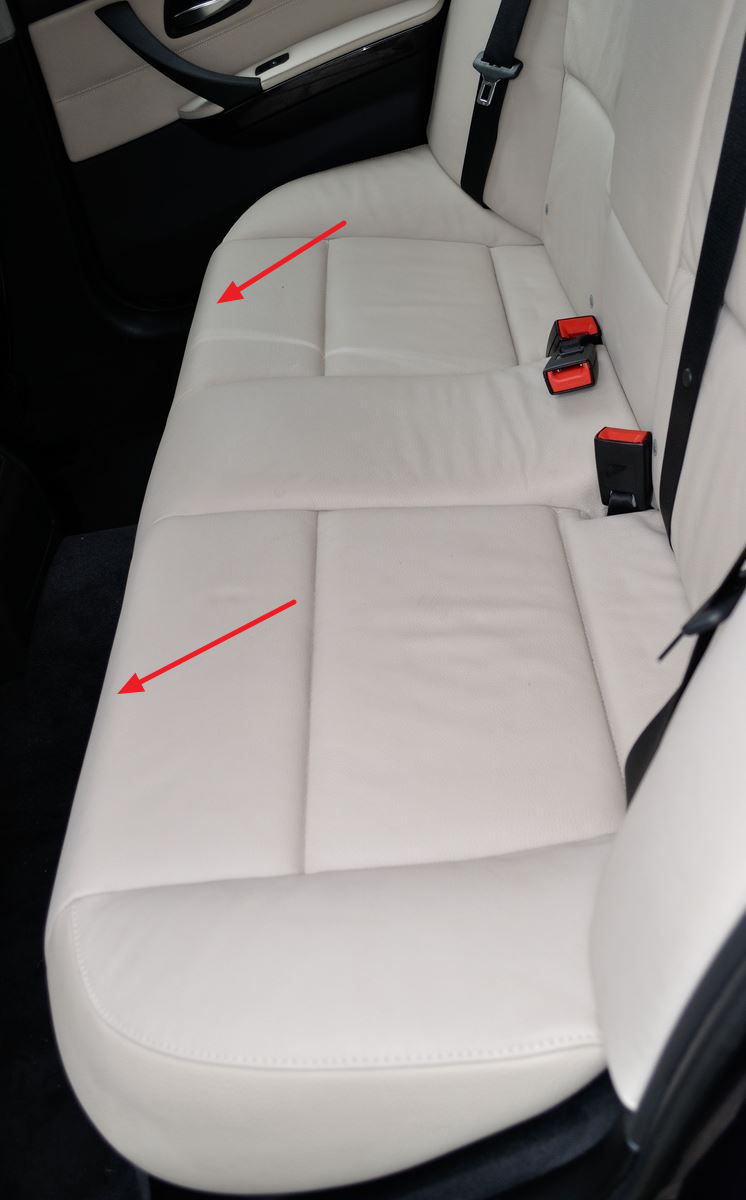

To remove bottom part of the back seat, simply pull it up around the marked area.

BMW E90 back seat

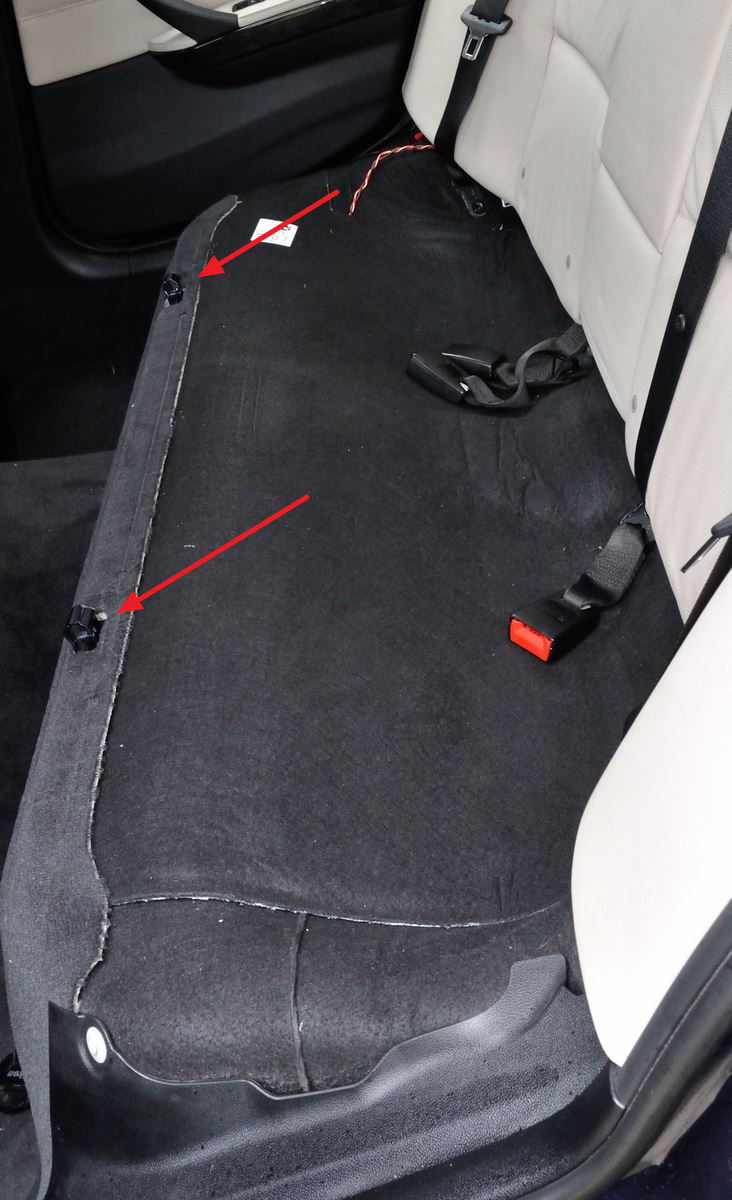

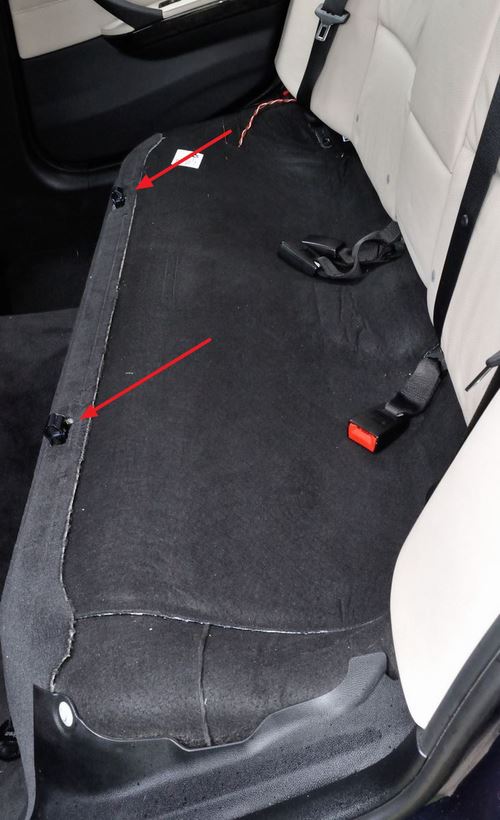

Bottom part removed. It was held in place with these metal catches.

BMW E90 back seat removed

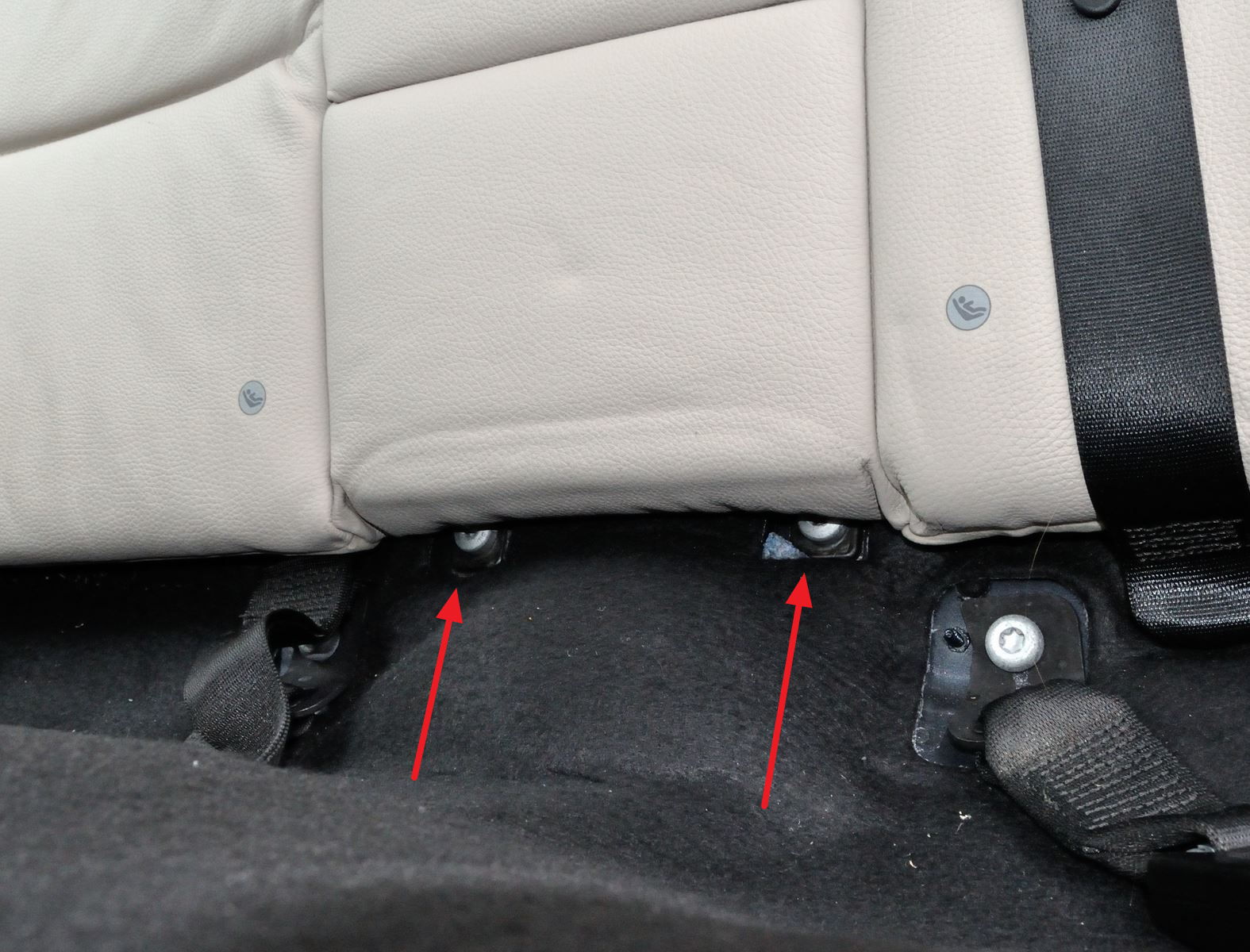

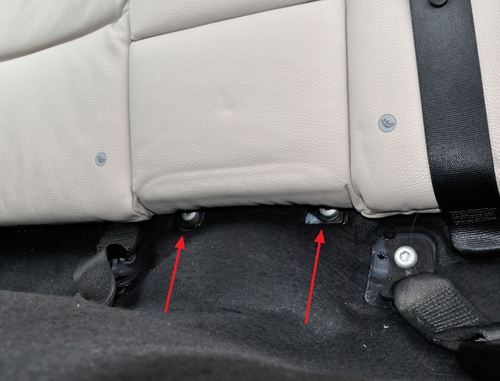

To remove back cushion, first unscrew two screws (torx size 50) located at the centre of the cushion.

BMW E90 rear seat cushion screws

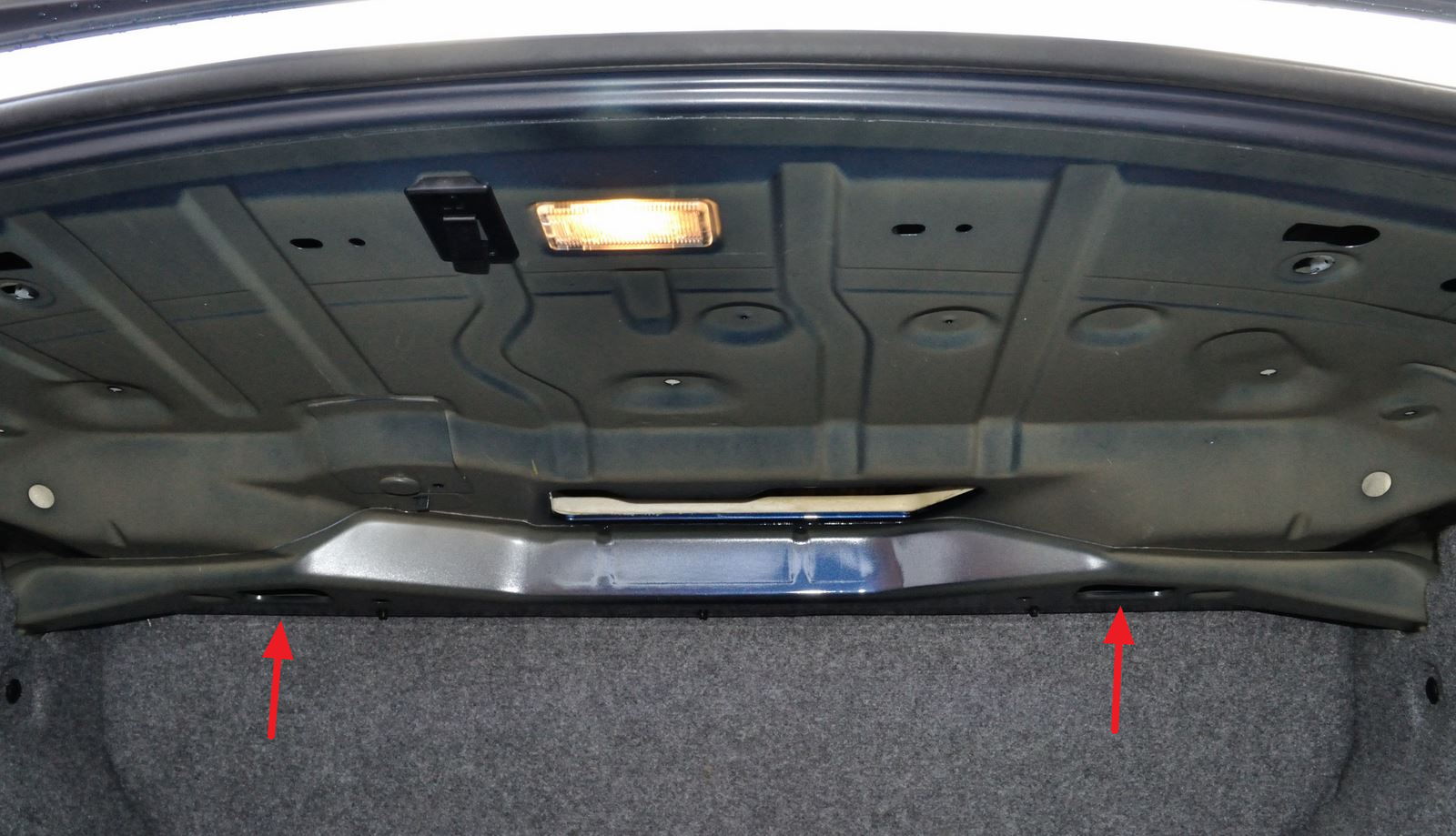

Then, to release the upper part of the rear cushion, unclip two metal hooks accessible from inside of the boot.

BMW E90 rear seat back hooks

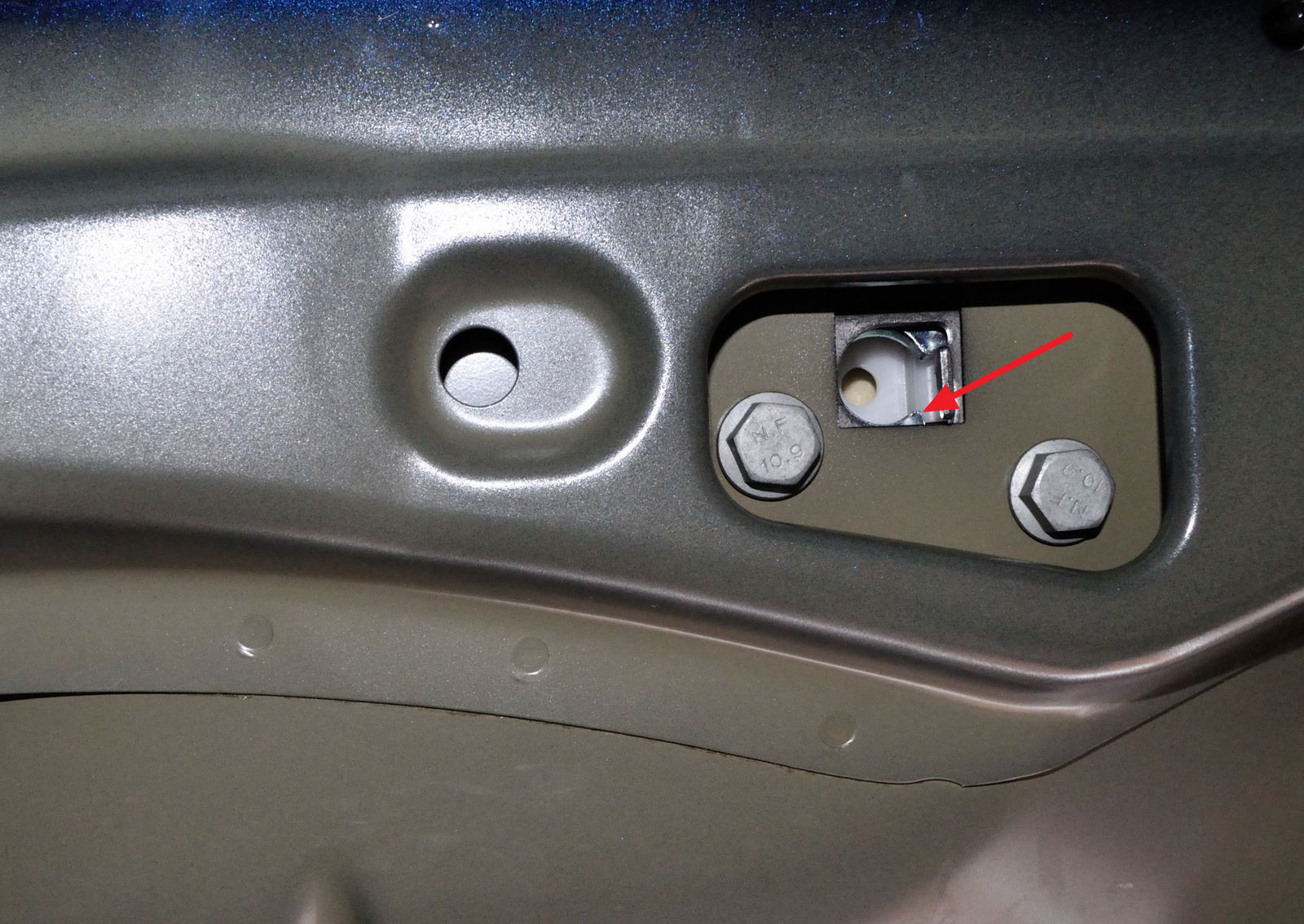

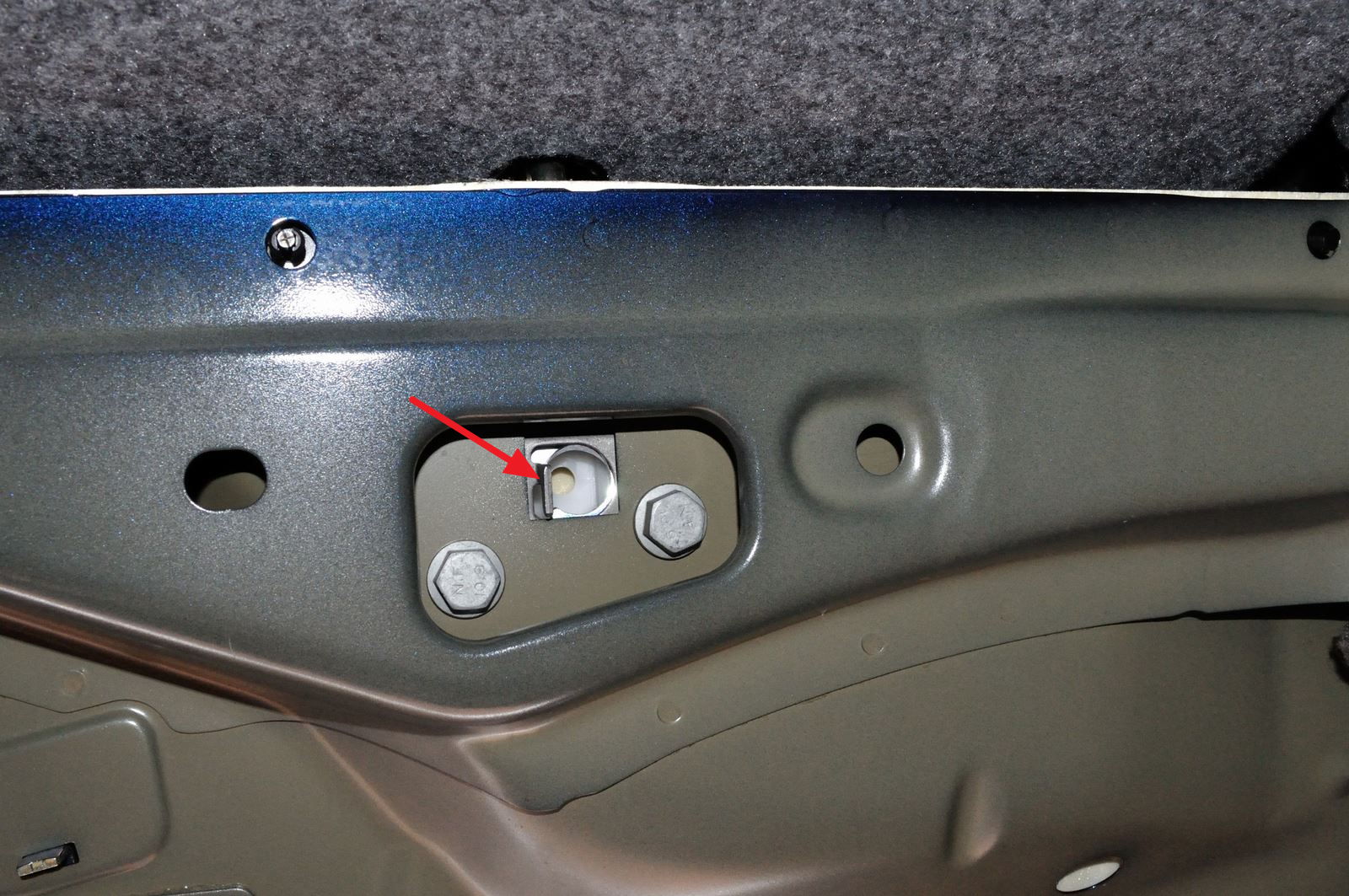

Just push it to the side with a flat screwdriver until you hear a release sound.

BMW E90 rear seat back hook release



Repeat the same on the other side.

 BMW E90 rear seat back hook release

After this, simply maneuver the cushion out of the car. A help of another person helps, but is not necessary.
