Installing BMW Alpine Stereo upgrade (BMW 3 series E90)



Remove boot trim

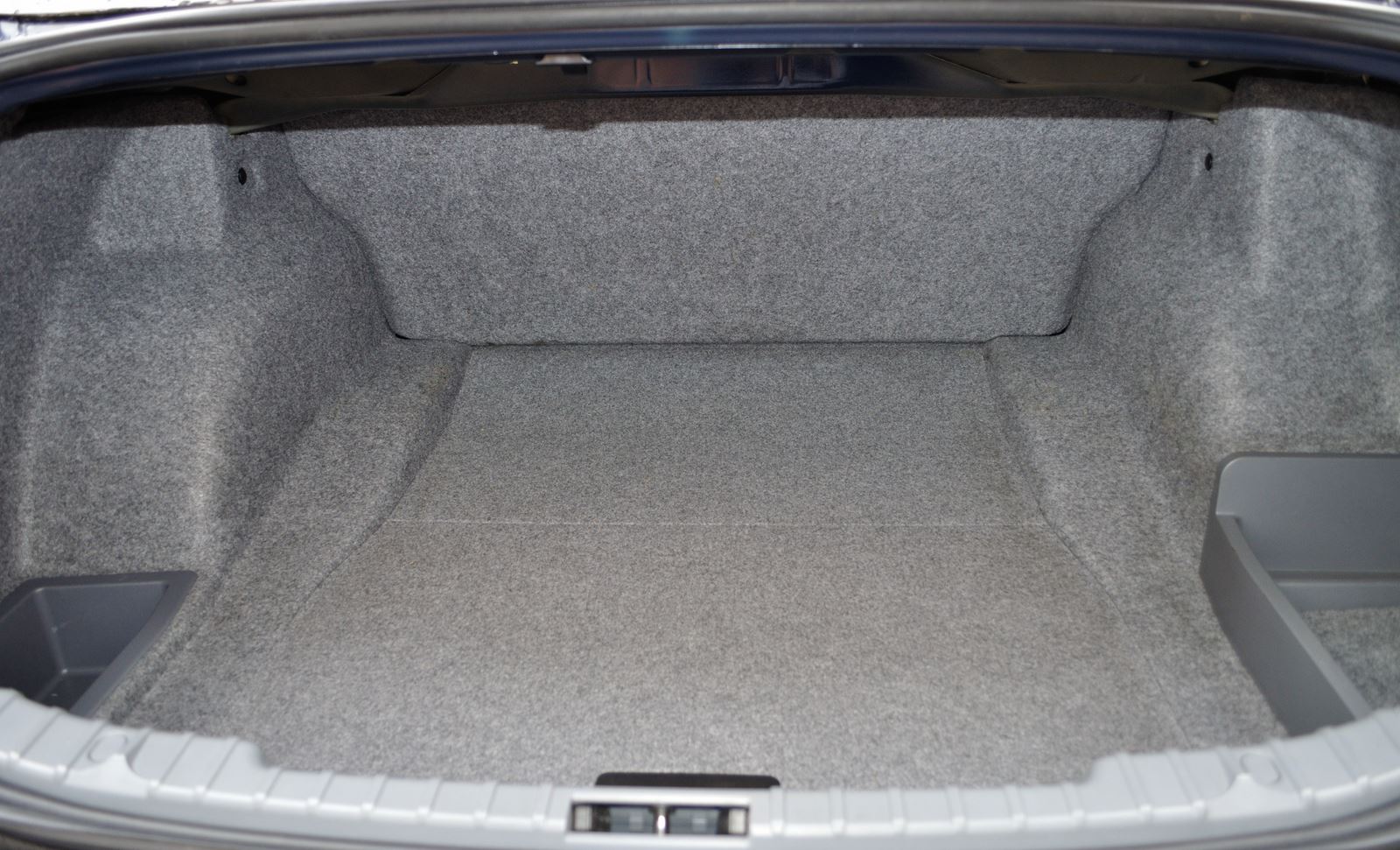

BMW boot

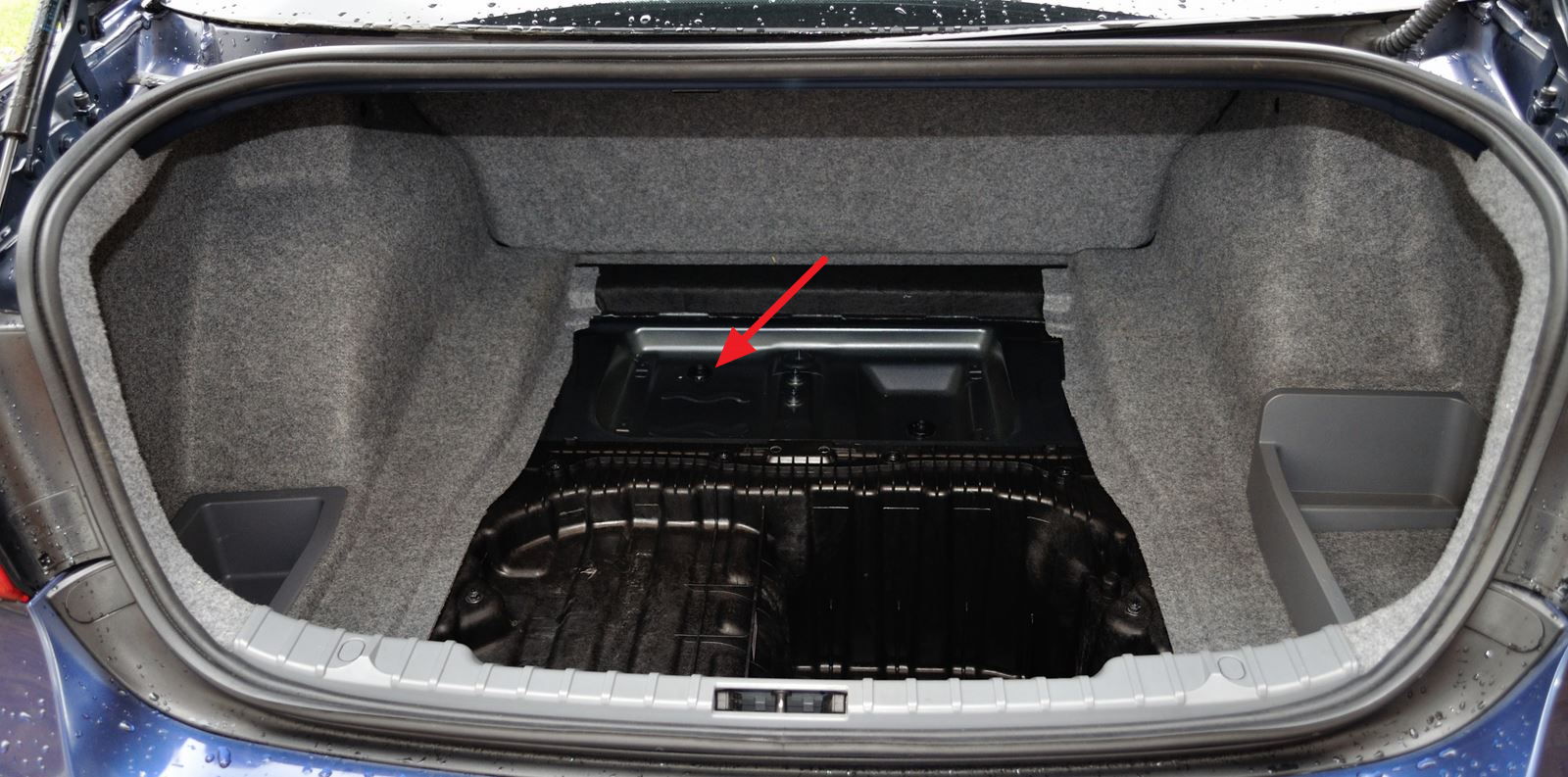

First, remove the boot floor. the arrow indicated where the amplifier will go.

BMW boot floor removed

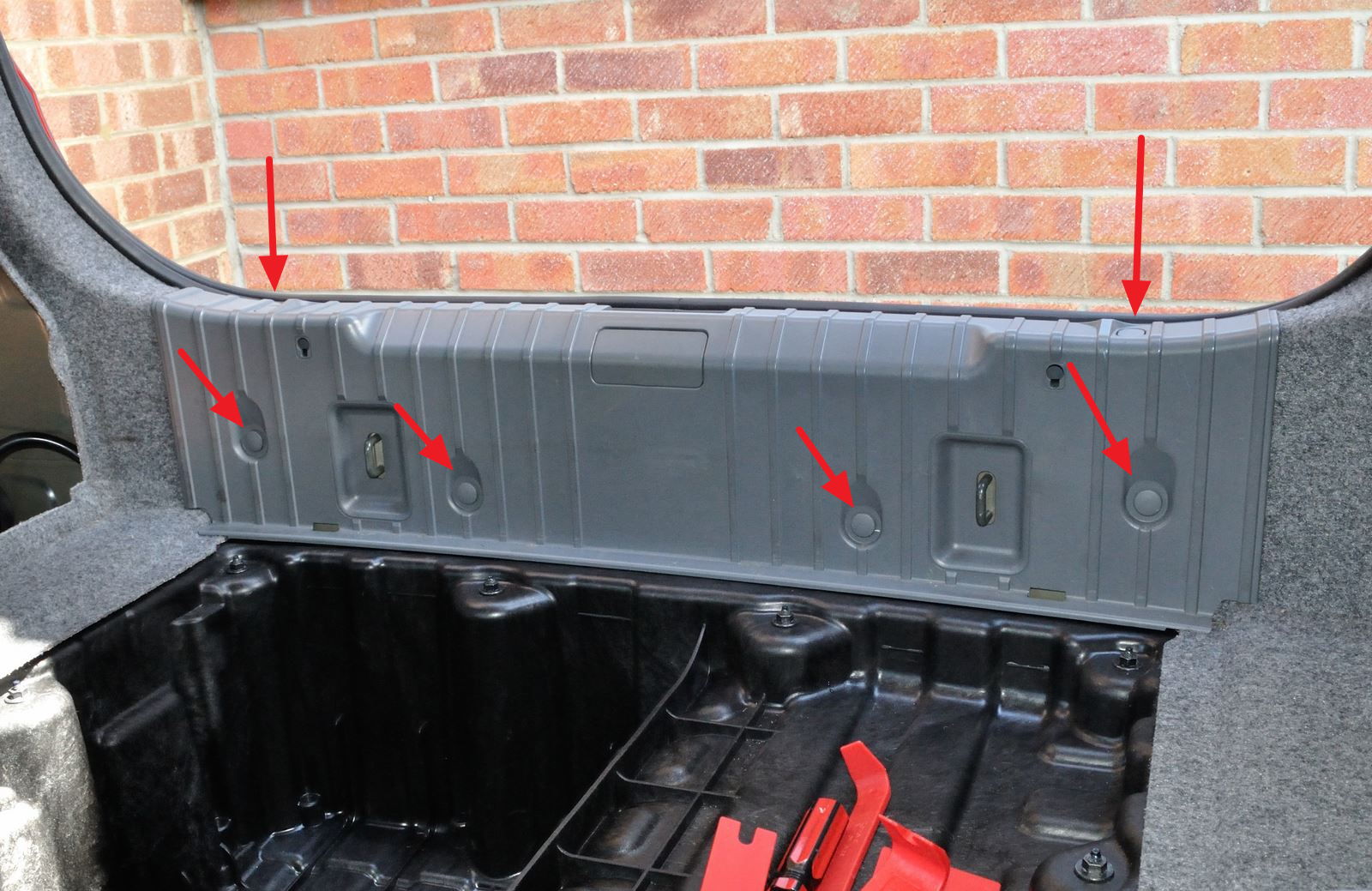

Then, remove the plastic cover from the rear side of the boot. It’s held in place by two torx screws and 4 plastic clips. Always use plastic tools to remove these and other clips to avoid damage to the plastic parts.

BMW boot rear cover

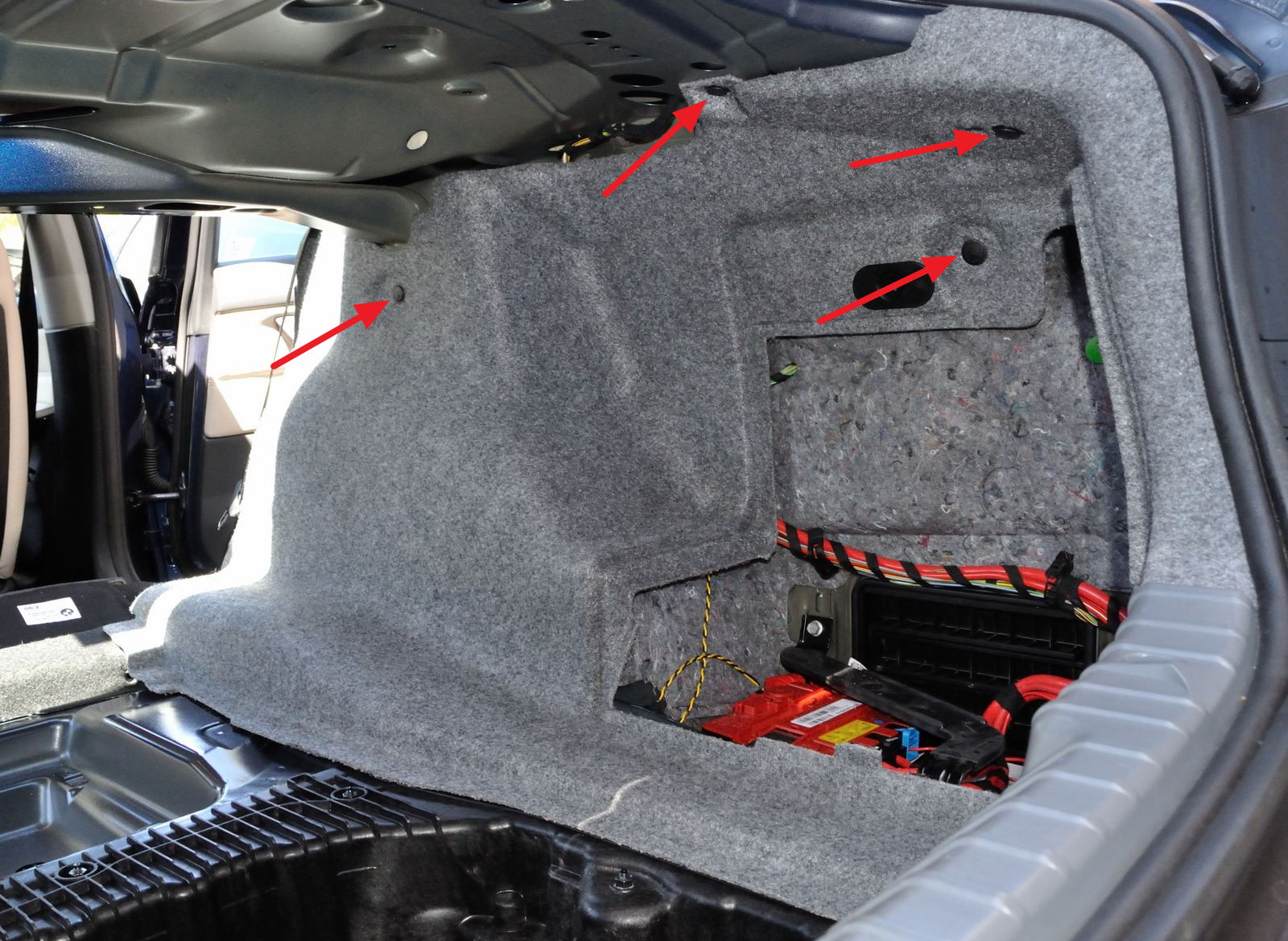

Now, remove covers from the sides. The right one is held in place by 4 black clips…

BMW boot trim right

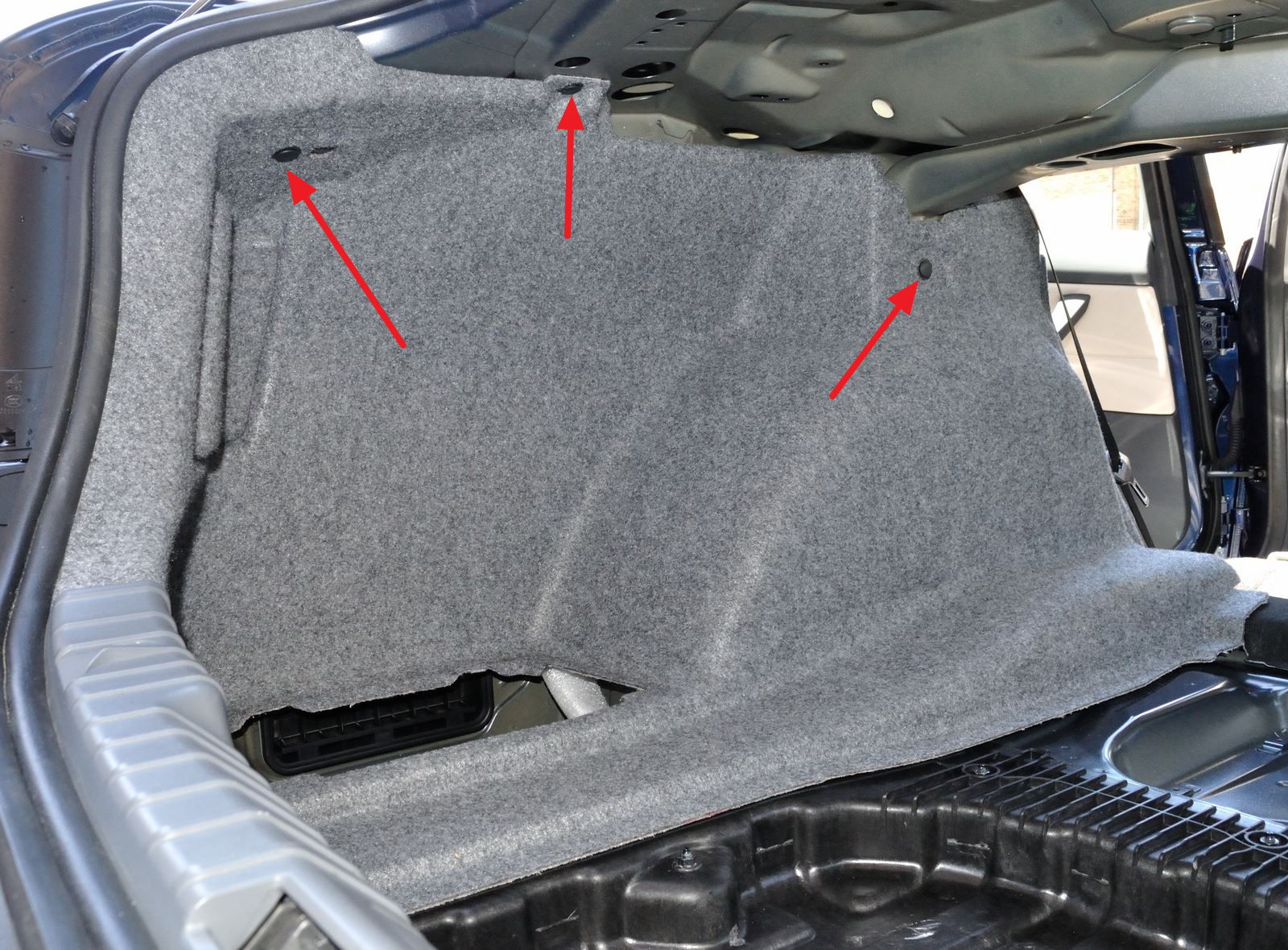

… and the left one by 3 clips.

BMW boot trim left

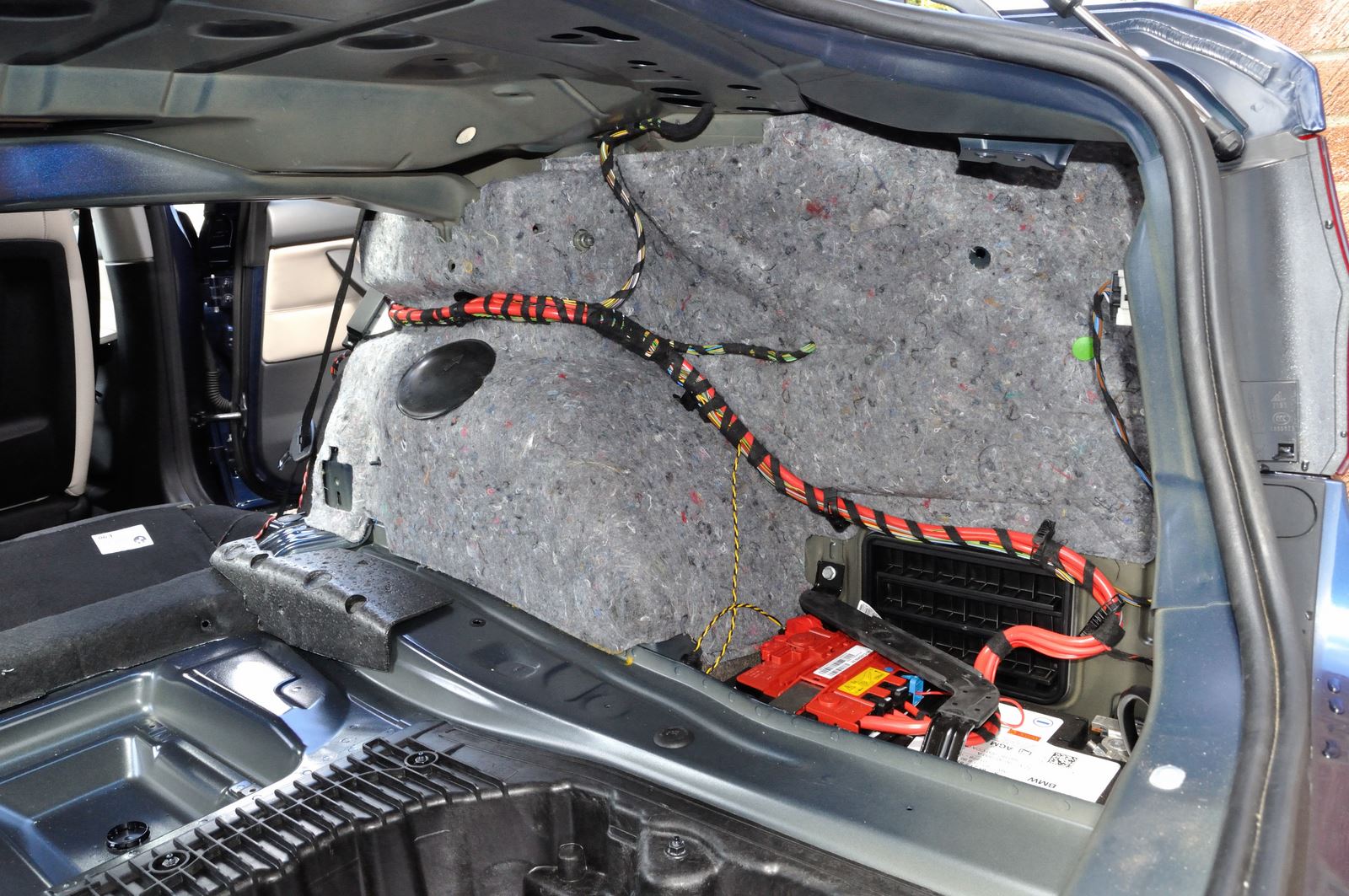

Right cover removed.

BMW right boot trim removed

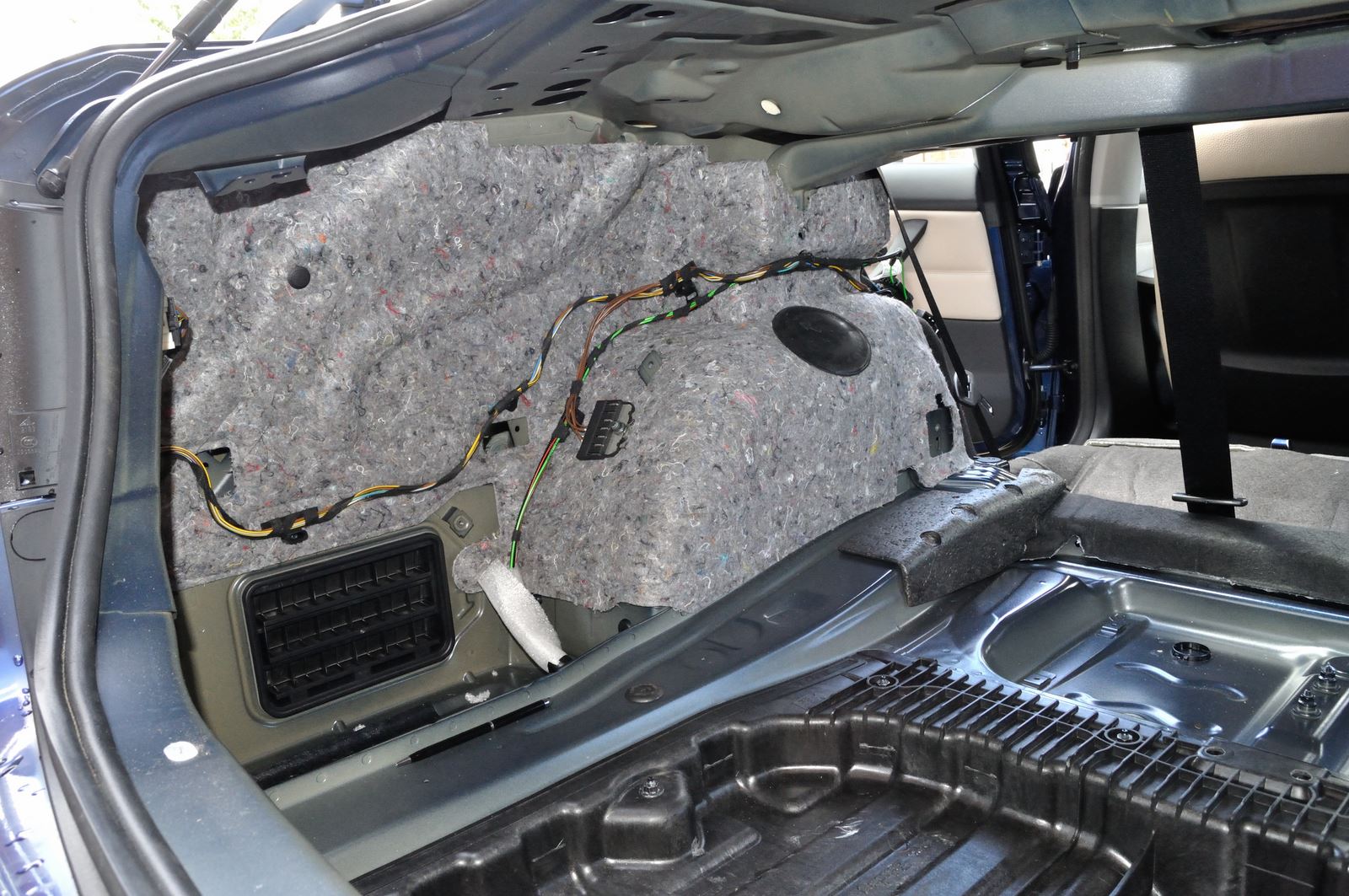

Left cover removed.

BMW left boot trim removed
